| Revised Rear Upright Top Block & Steer Arm for VanDiemen |
| This Revised rear upright Top Block & Steering Arm includes several beneficial features: It eliminates the spacer plate between the upright and the block. It incorporates an extra 20mm dowel that indexes in the center of the stock VD upright. This provides extra shear strength as the stock small dowels are located close to the edge of the upright casting. They will often 'egg-out' the pockets or break through the casting wall especially if you use the curbs driving. The Block has a window that allows for servicing the brake disc drive pins. This allows you to change brake discs or drive pins without removing the block from the upright. The Block is also designed with a much larger camber shim surface area for increased clamp load. We supply wider surface area camber shims for this part. The Revised rear steering arm has a matching camber shim configuration for a more ridged assembly. The Rear Steering Arm also has a window that allows easier access to the camber bolts. |
| For more information or to order - email: paul@rsport.us or phone / text: 412-721-2664 |
| For more information or to order - email: paul@rsport.us or phone / text: 412-721-2664 |

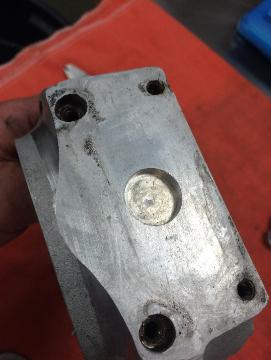

| Example of typical upright problem Note the dowel & stud pockets |

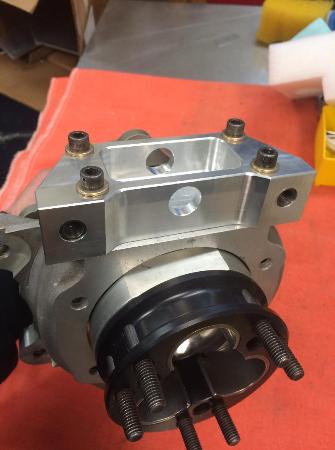

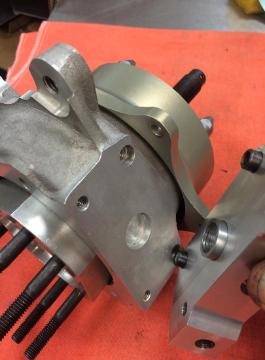

| Additional 20mm dowel mates to existing pocket on upright |

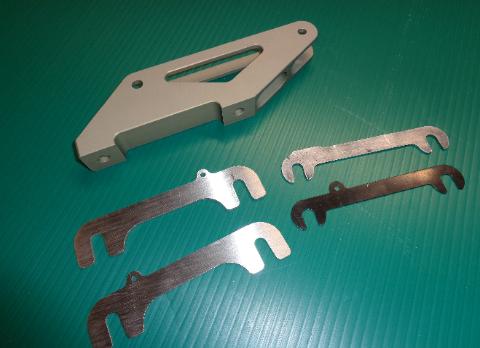

| Note the difference: These revised larger shims provide more clamping area and a more ridged assembly |

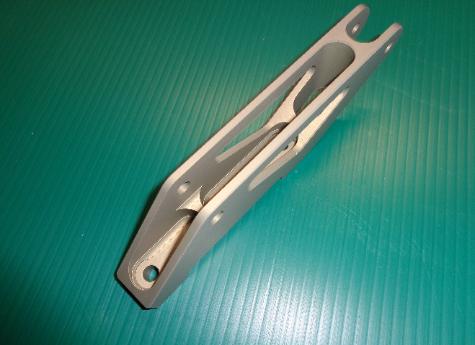

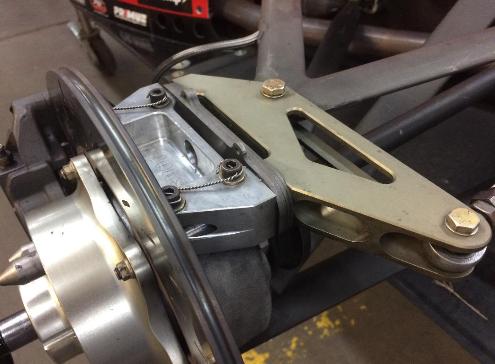

| Steering Arm has walls inside clevis areas for additional structural rigidity. A window on the face provides easy wrench access to the camber bolts |

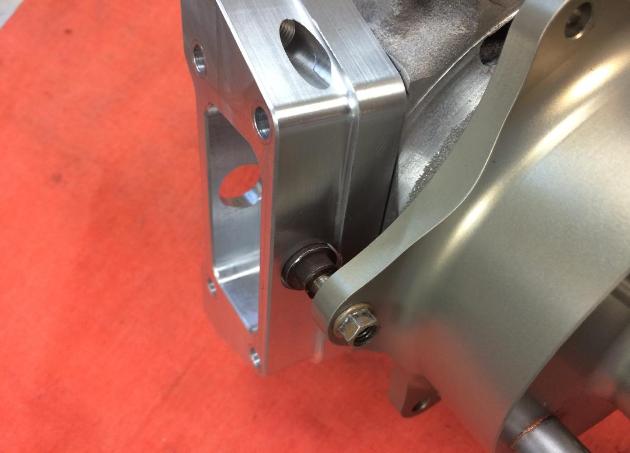

| Easy access to brake disc drive pins via window in block wall, |
